Small Fragment Locking Plate Instrument Set

SET INCLUDES :

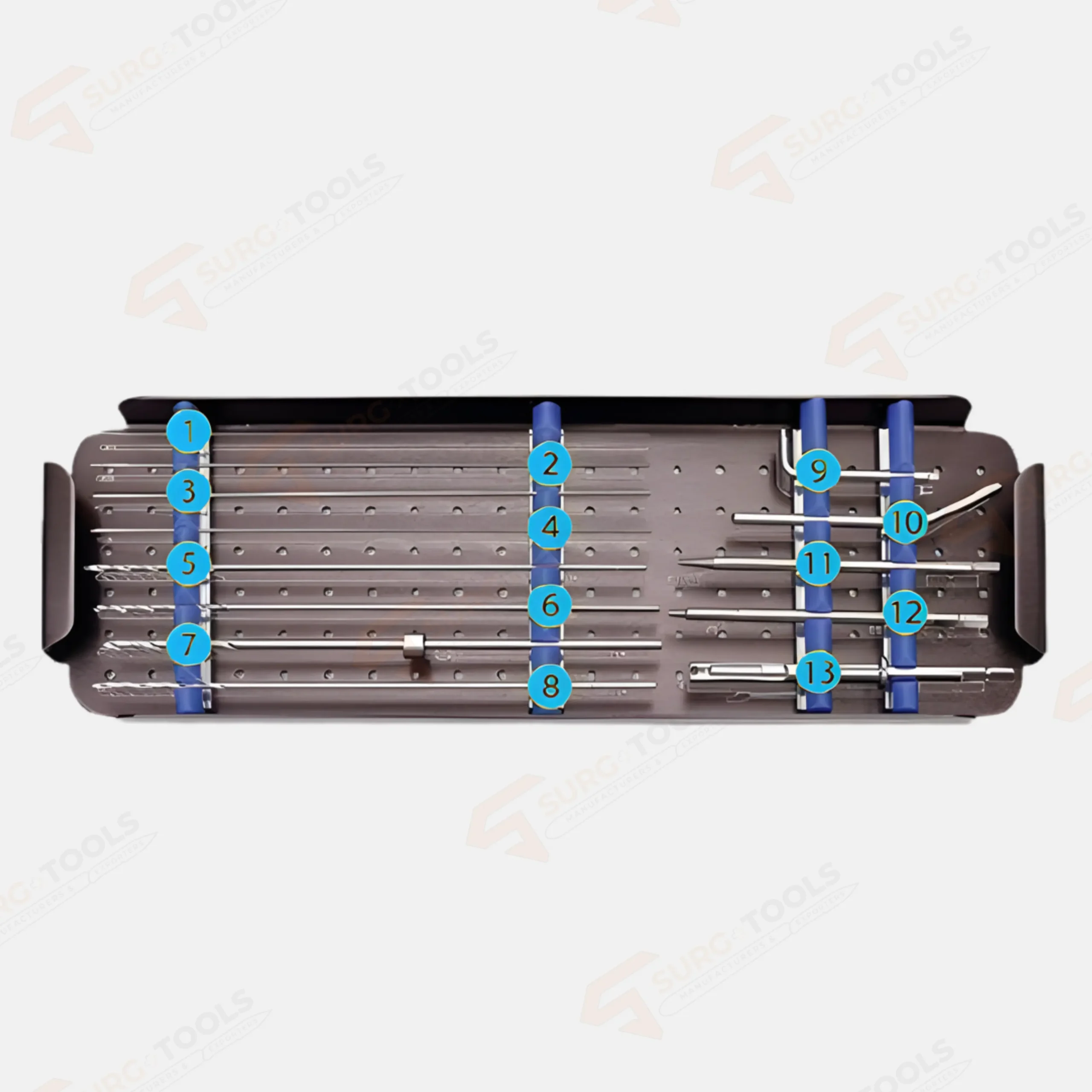

1 – Threaded Guider Wire φ1.5*200mm

1 – Threaded Guider Wire φ1.5*200mm

1 – Guider Wire φ1.5*200mm

1 – Guider Wire φ1.5*200mm

1 – Drill Bit φ2.5*200mm

1 – Drill Bit φ2.5*200mm

1 – Drill Bit φ3.2*200mm with Limitator

1 – Drill Bit φ3.2*200mm

1 – Hex Key

1- Sleeve Key

1 – Extraction Screw

1 – Screwdriver Hexagonal 2.5mm

1 – Screwdriver Hexagonal 2.5mm+Sleeve

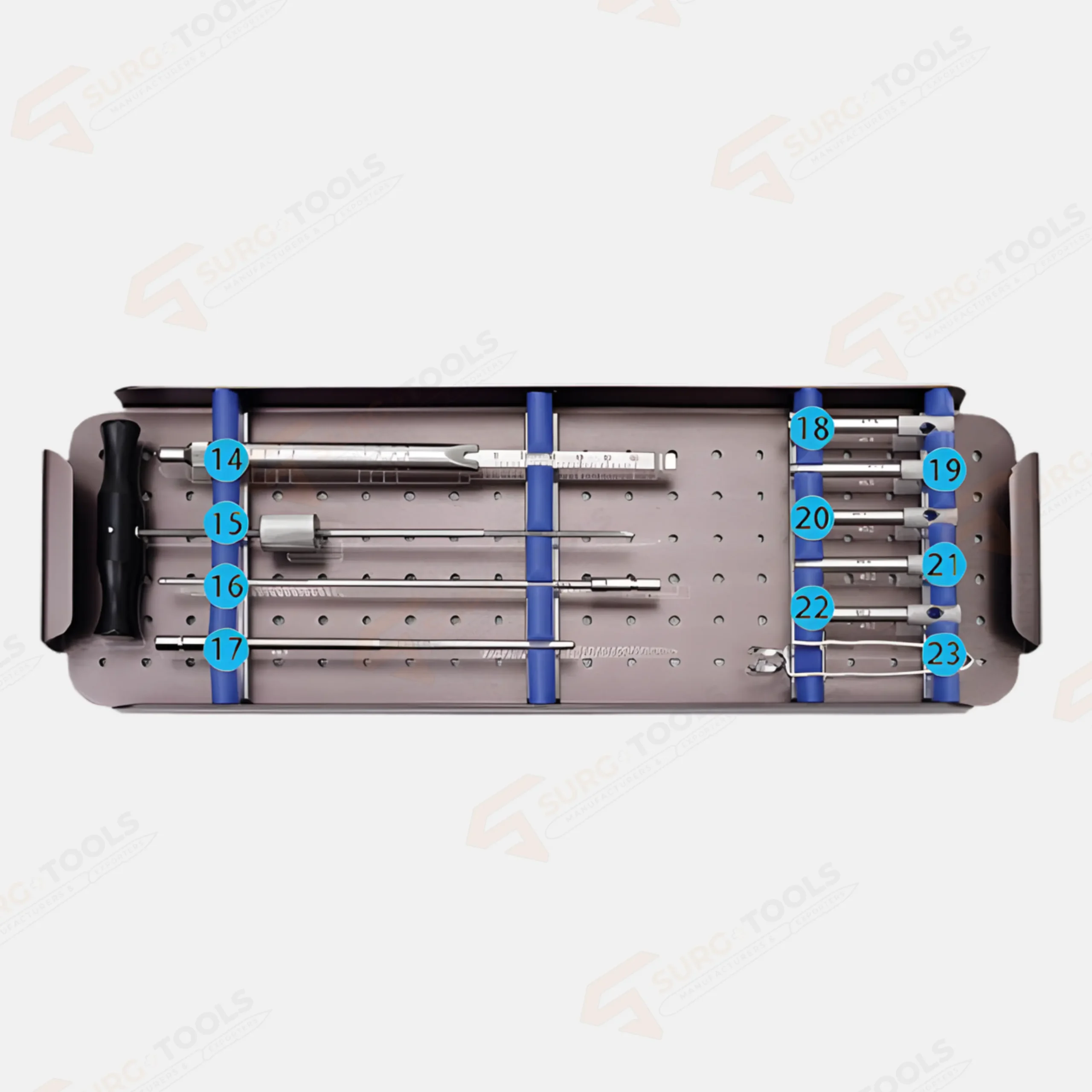

1 – Depth Gauge 0-60mm

1 – Push-pull Reduction Forceps

1 – Tap for Cortical Screw 3.5mm

1 – Tap for Locking Screw 4.0mm

1 – Threaded Wire Guider 1.5mm

1 – Threaded Wire Guider 1.5mm

1 – Threaded Drill Guider 3.2mm

1 – Threaded Drill Guider 3.2mm

1 – Threaded Drill Guider 3.2mm

1 – Screw Forcep

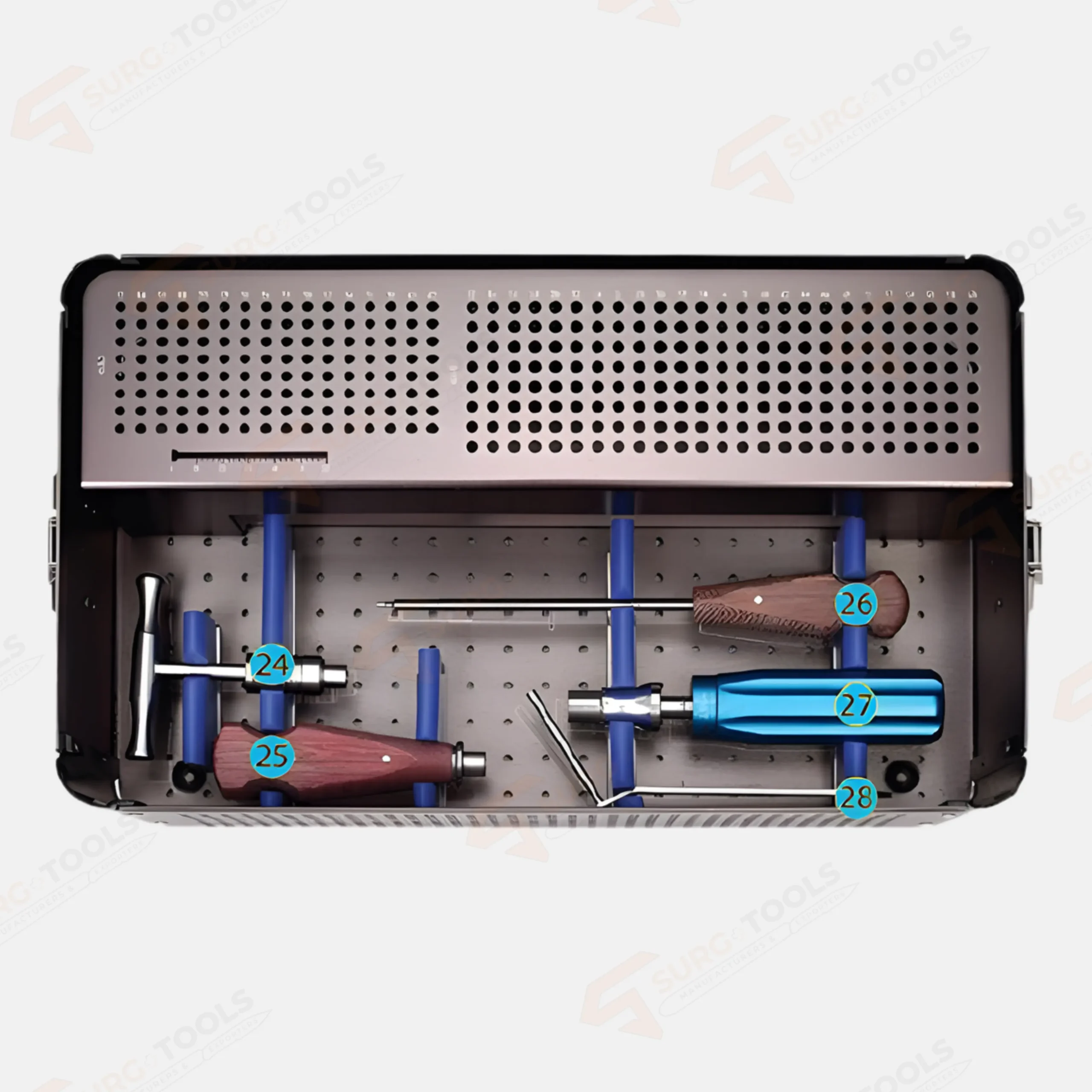

1 – T-handle Quick Coupling

1 – Straight Handle Quick Coupling

1 – Screwdriver Hexagonal 2.5mm

1 – Torque Limiting Handle 1.5N.M

1 – Protective Sleeve

1 – Aluminum Box

Key Specifications

• System Compatibility: Designed for 3.5mm & 4.0mm Locking Compression Plate (LCP) Systems.

• Application: Trauma, Orthopedics, Small Bone Fixation (Radius, Ulna, Fibula, Clavicle), MIPO Procedures.

• Core Material: Medical-Grade Stainless Steel (AISI 316L) with Anodized Aluminum components.

• Critical Feature: Integrated Torque-Limiting Mechanism (Typically 1.5 Nm).

• Sterilization: Fully autoclavable and compatible with all standard sterilization methods.

• Compliance: Meets ISO 13485, CE, and FDA standards.

• Set Configuration: Comprehensive set of 20-30 specialized instruments.

  Additional Information

  Intended Use:
  This set is intended for the implantation, reduction, and fixation of small fragment locking bone plates and screws in fracture treatment, osteotomies, and fusions. It is specifically designed for use with 3.5mm and 4.0mm locking plate systems that utilize threaded screw holes for angular stability.

  Technological Advantage:
  The set addresses the unique requirements of locked plating, such as the prevention of cross-threading and precise torque application. The torque-limiting driver is critical to prevent overtightening, which can strip the locking interface, while the threaded guides ensure perfect coaxial alignment for screw insertion.

  Packaging:
  Instruments are securely organized in a custom, two-layer foam tray with laser-etched silhouettes for quick identification and inventory control. The tray fits into a robust, waterproof carrying case with a pressure relief valve for autoclaving.

  Why Choose This Locking Set from Surg Tools?

  • Cross-Platform Compatibility: Tested for reliable performance with leading implant manufacturer geometries.

  • Procedure-Specific Tools: Includes instruments you only need for locking plates, eliminating clutter.

  • Durability Where It Counts: Threaded guides and screwdriver tips are made from hardened steel to withstand repeated use without wear.

  • Expert Support: Access to our technical team for procedure integration and technique guidance.
