Name: Mis Tubular Retractor System Golden Coated Spine Surgery Set with Aluminium Sterilizing Box
Brand: Surg Tools
SKU: ST-MT-01
Availability: InStock

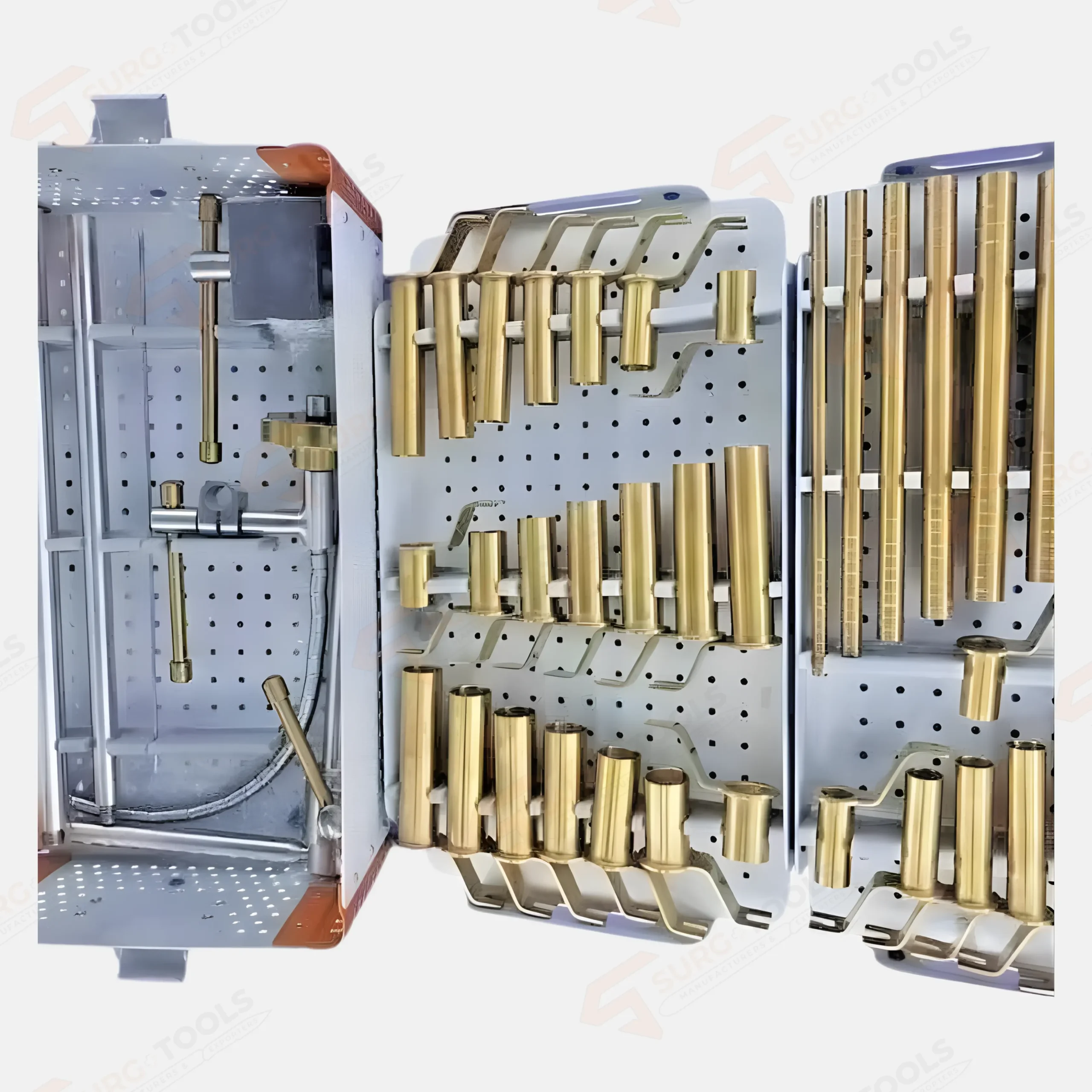

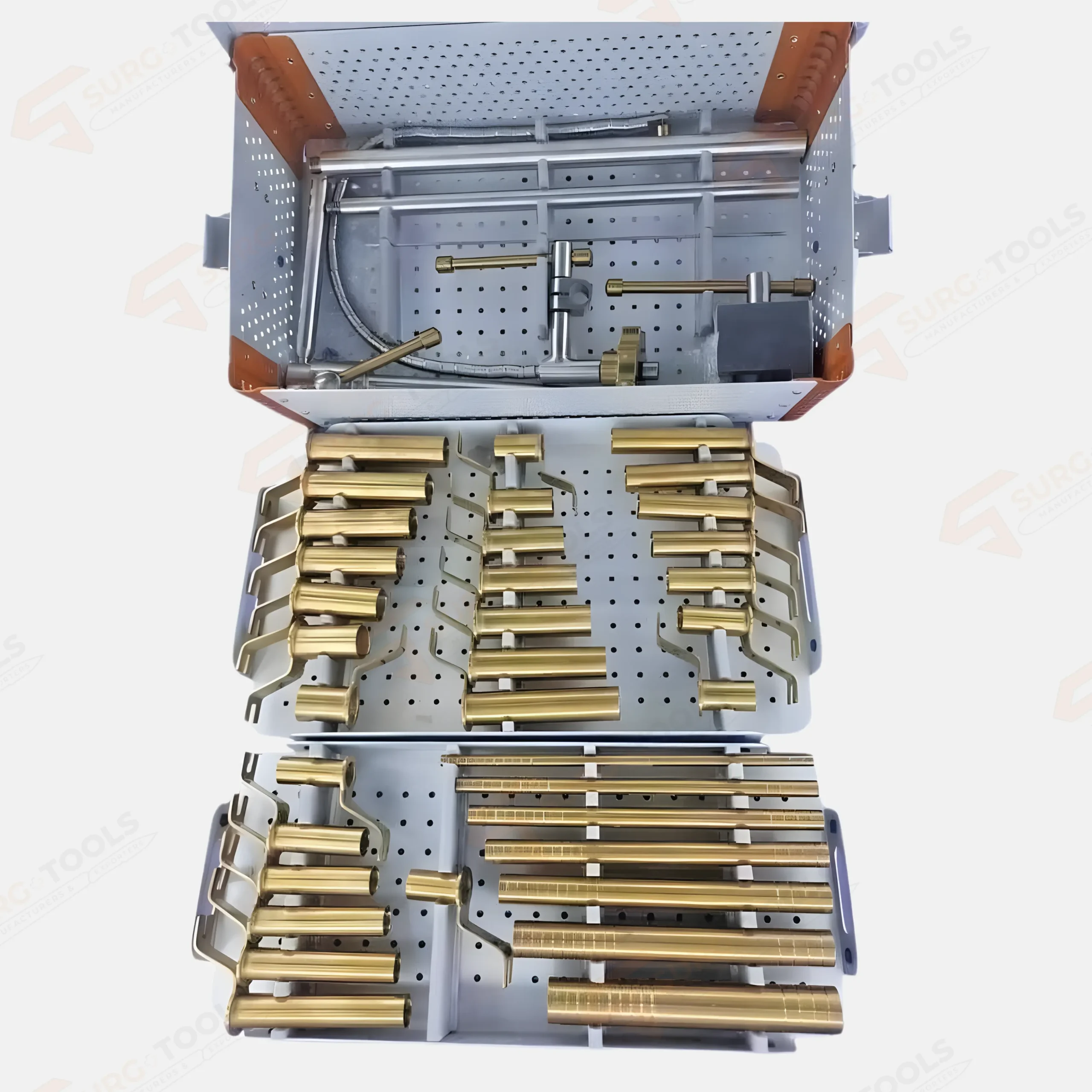

Set Includes :

(1) 3 pcs Sterilization Tray w/ Silicon Mats

(7) 20 mm x (3, 4, 5, 6, 7, 8, 9cm)

(7) 22 mm x (3, 4, 5, 6, 7, 8, 9cm)

(7) 24 mm x (3, 4, 5, 6, 7, 8, 9cm)

(7) Dilators (6, 8, 10, 12, 14, 16, 18.5mm)

(1) Complete Bed Support System with Malleable Arm

Features: Autoclavable, Titanium Cups & Dilators, Stainless Steel Bed Support, 5 Years Warranty, O.R Grade

Key Specifications

Primary Function: To provide a stable, minimally invasive access channel and operative corridor for deep-seated surgical procedures, primarily in neurosurgery and spine surgery.
System Components: Multiple tubular retractor diameters/lengths, retractor holder, flexible serpentine arm, table clamp, obturators, and aluminium case.
Core Material: Retractors: Medical-Grade Stainless Steel. Case & Arm: Anodized Aluminium Alloy.
Typical Application: Microdiscectomy, TLIF, Transforaminal Lumbar Interbody Fusion, Deep Brain Biopsy, Intracranial Tumor Resection.
Sterilization: Reusable System. Fully autoclavable and compatible with standard sterilization methods.

Product Description Table

Feature	Specification / Description
Product Name	Mis Tubular Retractor System Golden Coated with Aluminium Sterilizing Box
Common Aliases	Tubular Retractor Set, MIS Retractor Kit, Minimally Invasive Retraction System
Catalog Number	ST-MT-01
Tubular Retractors	Multiple sizes (e.g., 14mm, 16mm, 18mm, 20mm diameters x varying lengths: 60mm, 80mm, 100mm). Straight and angled options may be included.
Retractor Material	High-Grade Surgical Stainless Steel (Matte Finish to reduce glare)
Flexible Arm	Multi-jointed, Locking Serpentine Arm with Table Clamp
Obturators	Blunt-tipped, matching each retractor diameter for safe tissue dilation.
Case Material	Hard-Anodized Aluminium Alloy with Secure Locking Latches
Case Interior	Custom CNC-milled foam or EVA insert with labeled slots for every component.
Case Dimensions	Approximately 450mm x 300mm x 100mm (Varies by set composition)
System Weight	~7.5 – 8.5 kg (Total, including case)
Intended Use	Minimally Invasive Spine (MIS) Surgery, Neurosurgery, Deep Tissue Access Procedures
Reusability	Fully Reusable System – Designed for Hundreds of Sterilization Cycles
Compliance Standards	ISO 13485, ISO 9001, CE Marked, FDA 510(k) Cleared (as applicable)

Additional Information

Intended Use & Clinical Applications

The Mis Tubular Retractor System is engineered for procedures requiring deep, focused access with minimal soft tissue trauma. Its primary applications include:

Minimally Invasive Spine Surgery: Posterior lumbar microdiscectomy, TLIF (Transforaminal Lumbar Interbody Fusion), decompression procedures.
Neurosurgery: Resection of deep-seated brain tumors, evacuation of hematomas, brain biopsy.
Other Specialties: Selected deep soft-tissue procedures in orthopedic and general surgery where a protected, cylindrical working channel is advantageous.

System Components & Benefits

Tubular Retractors: Smooth, cylindrical design dilates rather than cuts muscle fibers. Provides a consistent, unobstructed surgical corridor.
Flexible Arm & Table Clamp: Allows infinite positioning and rigid, hands-free fixation of the retractor, freeing the surgeon’s and assistant’s hands.
Obturators: Enable sequential, blunt dilation of tissue down to the target surgical site before retractor placement.
Aluminium Sterilizing Box:
- Protection: Securely houses and protects all delicate system components during transport and storage.
- Organization: Custom-cut foam ensures every item has a dedicated, labeled place, preventing loss and speeding up set-up.
- Sterilization Ready: The entire case can be autoclaved with instruments inside, allowing the system to be stored sterile and moved directly to the OR back table.

Cleaning, Sterilization & Storage Instructions

Cleaning: Disassemble all components post-procedure. Use enzymatic detergents and ultrasonic cleaners to remove all biological debris from retractor lumens and arm joints. Rinse thoroughly.
Sterilization: Recommended Method: Steam Autoclave. Place all components in the open aluminium case (or with lid slightly ajar) on a standard cycle (e.g., 270°F/132°C for 10-15 minutes). Ensure the case is dry before closing latches post-cycle. Compatible with other methods per manufacturer IFU.
Storage: Store the closed, sterile case in a clean, dry environment. The integrated system ensures all parts remain together and ready for immediate use.

Why Choose Surg Tools?

Complete Procedural Solution: We supply the full system, not just individual components, ensuring compatibility and performance.
Expert Support: Our surgical team provides guidance on set selection and integration into your MIS workflow.
Quality Verification: Every system is inspected for arm locking strength, retractor smoothness, and case integrity.
Value Through Longevity: Investing in a high-quality reusable system provides significant cost-per-procedure savings over time compared to disposable alternatives.

Disclaimer: This device is intended for use by qualified surgeons trained in minimally invasive techniques. Always follow the manufacturer’s detailed instructions for use, cleaning, and sterilization. Specifications may vary by specific kit configuration. Confirm all details prior to purchase.
